GMC2518 Large Gantry CNC Machines BT50 2.5 Meter Fresadora CNC Machine Tools

  • 1
  • 2
  • 3

Brand Name : Zaozhuang NO.1

Model Number : GMC2518

Certification : CE,ISO

Place of Origin : Shandong, China

MOQ : 1 set

Price : 75000USD

Payment Terms : T/T

Supply Ability : 100 sets/month

Delivery Time : 45 days after getting the deposit.

Packaging Details : Export standard wooden case or as customers' requirement

Work table size (width × length) (mm) : 1600X2700

X/Y/Z Axis stroke（mm） : 2500*1900*1000

Width of gantry(mm) : 1900

high of gantry(mm) : 1300

Distance from spindle end face to work table (mm) : 200-1000

Spindle Specifications (Model/Installation Diameter) : BT50-Φ190

Spindle motor recommended（kw） : 22

T-shaped groove for table(mm) : 9-22X180

Tool magazine : Arm24

Contact Now

GMC2518 Large Gantry Machining Center BT50 2.5 Meter Fresadora Cnc Machine Tools
Product Description:
The GMC2518 is a high-performance gantry machining center featuring rigid bridge-type construction and precision linear guides for superior accuracy. With high-power spindle and smart CNC system, it excels in precision machining of large complex parts, ideal for mold, automotive and heavy machinery manufacturing.
Standard Configuration:
1.syntec 22ma control system
2.Bt50 Taiwan 6000 RPM spindle
3.Taiwan hiwin screw
4.Taiwan hiwin 3 axis roller linear rails
5.Taiwan OKADA 24 -Disc- atc
6.Electrical cabinet cold air exchanger
Detailed Configuration:
1.spindle unite:kenturn/OKADA/volis
2.electricals:Schneider
3.tool cylinder:tenio
4.lubrication pump:HERG
5.bearing:SKF/NACHI
6.coupling:R+W
Product Specification:
Item Model
Unit
GMC2518
GMC3018
GMC3518
Size of worktable
mm
1600x2500
1600x3000
1600X3500
Table move direction stroke(X)
mm
2500
3000
3500
Spindle slide moving direction stroke(Y)
mm
1800(Tool change stroke 2000)
1800(Tool change stroke 2000)
1800(Tool change stroke 2000)
Spindle up and down move direction stroke(Z)
mm
1000
1000
1000
Width of gantry
mm
1800
1800
1800
High of Gantry
mm
1300
1300
1300
Distance between spindle end face and worktable surface
mm
150-1150
150-1150
150-1150
T-shaped groove for table
mm
9-22X180
9-22x180
9-22X180
Spindle specifications
-
BT50/φ190
BTS0/φ190
BT50/φ190
Spindle transmission mode
-
Speed 6000r／min pulley ratio standard 1:1(optional 1.5:1)
Speed 6000r／min transmission 4:1
Maximum speed 6000r／mintransmission 4.4:1
Fast moving feed speed
m
15
15
15
Cutting feed rate
m
10
10
10
X/Y/Z axis ball guide gauge/pitch
mm
X:6312,Y:5010;Z:5010
X:8020,Y:5010;Z:5010
X:8016,Y:5010;Z:5010
X/Y/Z axis guide gauge/slider quantity
-
X axis: roller guide 55／8
Y axis: roller guide 5／4
Z axis: rectangular slide
X axis: roller guide 55／10
Y axis: roller guide 55／4
Z axis: rectangular slide
X axis: roller guide 55／10
Y axis: roller guide 55／4
Z axis: rectangular slide
X/Y/Z axis servo motor drive mode and drive ratio
-
X, Y, Z axes are directly connected
X-axis planetary reducer 4:1；Y, Z-axis direct connection
Spindle motor recommended
kw
22kwwide area motor
22kw wide area motor
22kw wide area motor
X/Y/Z three-phase servo motor recommended
-
x:38,Y:30,Z:30
(Brake)
x:38:Y:30:Z:30
(Brake)
X:38:Y:30:Z:30
(Brake)
Dimension of optical machine
mm
6750X3160X3961
7705X3160X3961
8705X3160X3961
Load-bearing table
T
7
8
9
Light machine weight
T
21
23.5
26
Details Display:

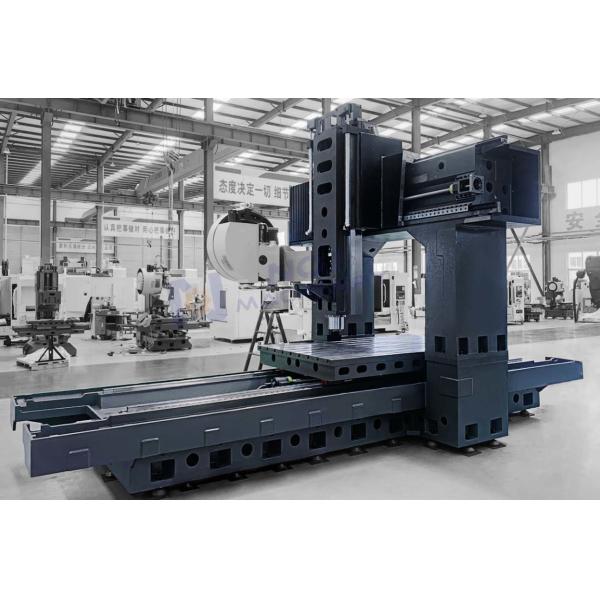

GMC2518 Large Gantry CNC Machines BT50 2.5 Meter Fresadora CNC Machine Tools

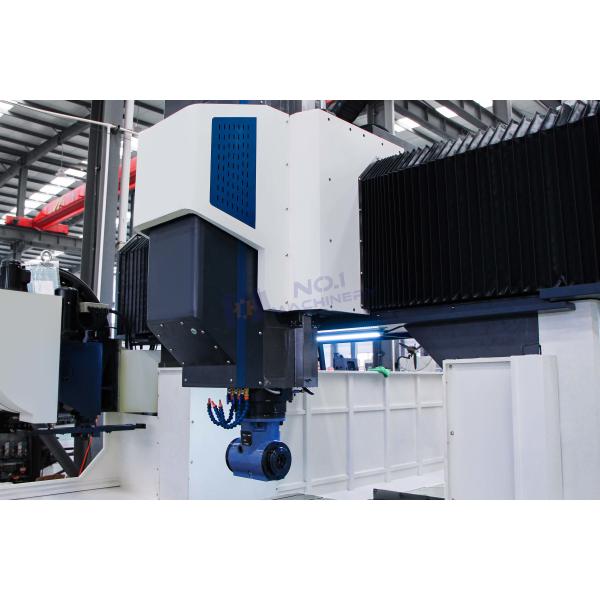

GMC2518 Large Gantry CNC Machines BT50 2.5 Meter Fresadora CNC Machine Tools

GMC2518 Large Gantry CNC Machines BT50 2.5 Meter Fresadora CNC Machine Tools
